How Airbags Work
When a crash happens, sensors send data to a central “brain” (called the “Airbag Control Unit”). The ACU evaluates all incoming information to decide if air bag deployment is necessary, and if needed, deploy specific air bags.

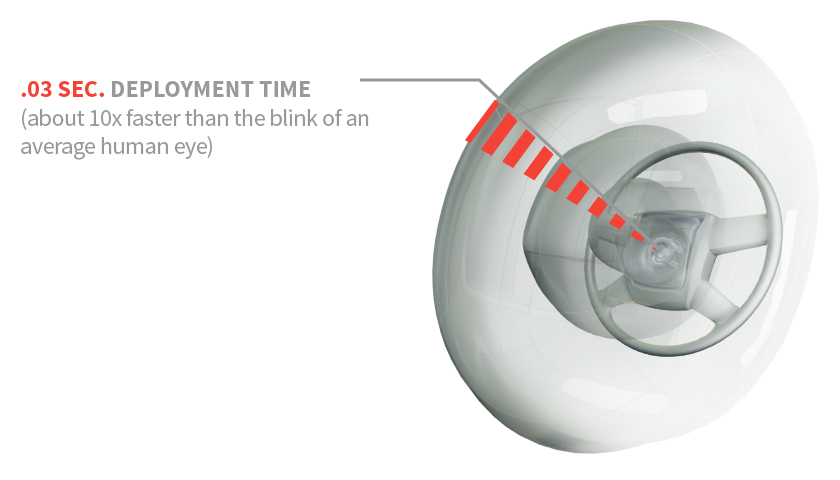

The process usually happens in under 0.03 seconds, and before a human body would move toward it because of the crash.

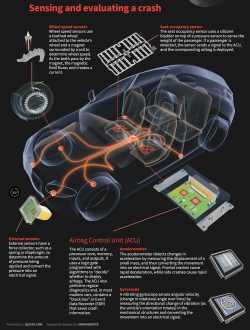

Sensing and evaluating a crash
Wheel speed sensors
Wheel speed sensors use a toothed wheel attached to the vehicle’s wheel and a magnet surrounded by a coil to determine wheel speed. As the teeth pass by the magnet, the magnetic field fluxes and creates a current.
Seat occupancy sensor
The seat occupancy sensor uses a silicone bladder on top of a pressure sensor to sense the weight of the passenger. If a passenger is detected, the sensor sends a signal to the ACU, and the corresponding air bag is deployed.
External sensors
External sensors have a force collector, such as a spring or diaphragm, to determine the amount of pressure being applied and convert the pressure into an electrical signal.

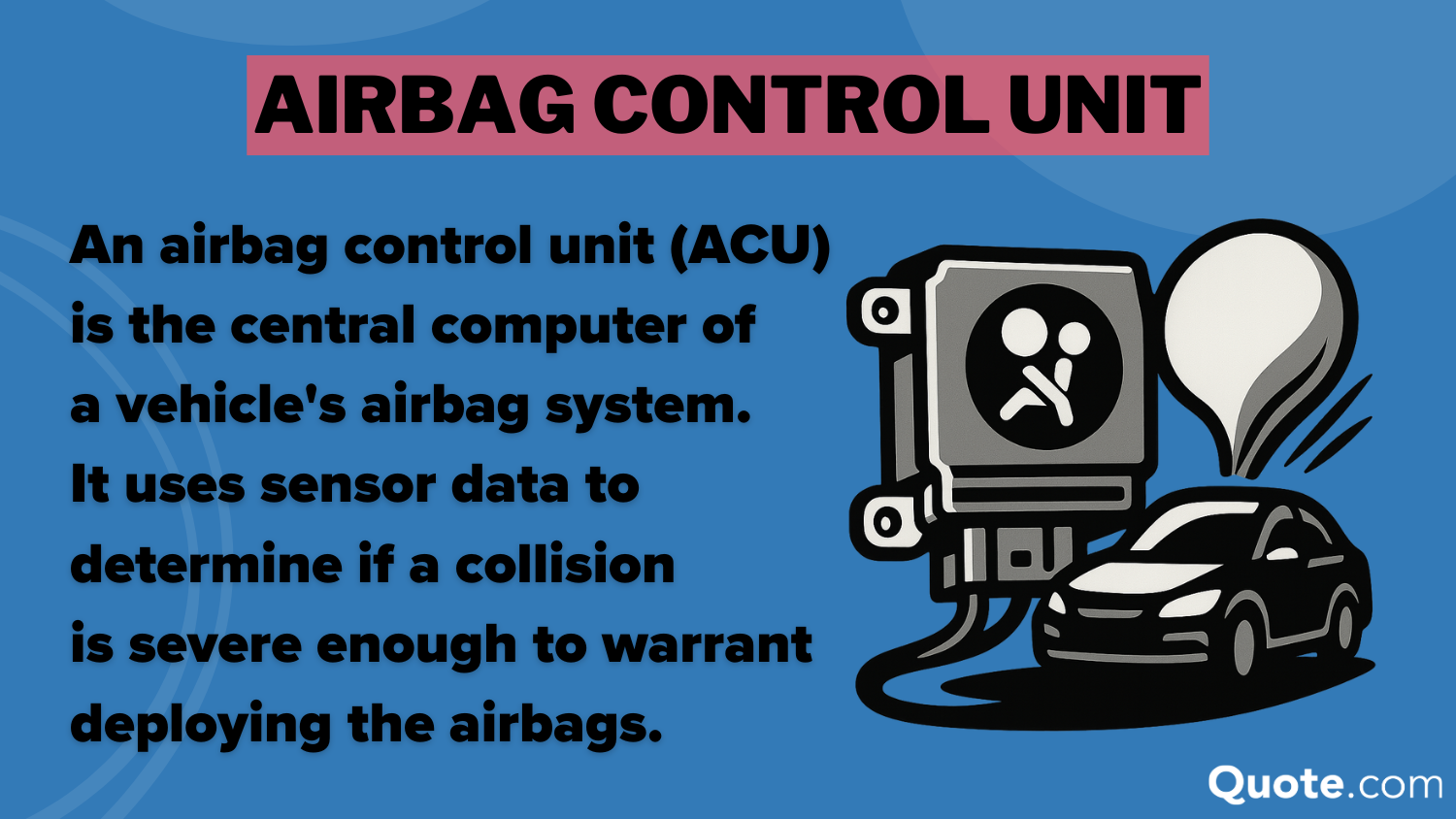

Airbag Control Unit (ACU)
The ACU consists of a processor core, memory, inputs, and outputs. It uses a logic gate programmed with algorithms to “decide” whether to deploy air bags. The ACU also performs regular diagnostics and, in most modern cars, contains a “black box” or Event Data Recorder (EDR) that saves crash information.
Accelerometer
The accelerometer detects changes in acceleration by measuring the displacement of a small mass, and then converting the movement into an electrical signal. Frontal crashes cause rapid deceleration, while side crashes cause rapid acceleration.
Gyroscope
A vibrating gyroscope senses angular velocity (change in rotational angle over time) by measuring the directional change of vibration (as the vehicle’s orientation rotates) in the mechanical structures and converting the movement into an electrical signal.

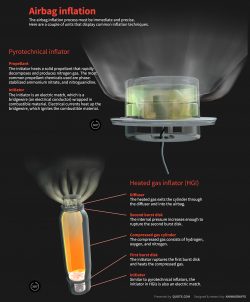

Airbag inflation
The air bag inflation process must be immediate and precise.
Here are a couple of units that display common inflation techniques.
Pyrotechnical inflator
-
Propellant
The initiator heats a solid propellant that rapidly decomposes and produces nitrogen gas. The most common propellant chemicals used are phase-stabilized ammonium nitrate, and nitroguanidine.
-
Initiator
The initiator is an electric match, which is a bridgewire (an electrical conductor) wrapped in combustible material. Electrical currents heat up the bridgewire, which ignites the combustible material.
Heated gas inflator (HGI)
-
Diffuser
The heated gas exits the cylinder through the diffuser and into the air bag.
-
Second burst disk
The internal pressure increases enough to rupture the second burst disk.
-
Compressed gas cylinder
The compressed gas consists of hydrogen, oxygen, and nitrogen.
-
First burst disk
The initiator ruptures the first burst disk and heats the compressed gas.
-
Initiator
Similar to pyrotechnical inflators, the initiator in HGIs is also an electric match.
The air bag
Woven nylon fabric
Powder
The air bag assembly usually contains talcum powder or cornstarch as a lubricant so the air bag doesn’t get stuck on deployment.
Storage
Airbags are folded and stored in a compartment inside the vehicle, which has designated seams that tear open during deployment.
Vents
Airbags have vents in the back that allow them to slightly deflate and cushion the vehicle’s occupant as they make contact with it.
Airbag types
Side torso air bag
Side torso air bags have a lower, firmer chamber to support the pelvis and an upper, softer chamber to cushion the ribcage.
Side curtain air bag
Side curtain air bags stay inflated for several seconds to protect occupants if the vehicle rolls over.
Center air bag
Center air bags prevent impact between the driver and passenger or between the rear passengers.
Seatbelt air bags
Inflatable seatbelts increase the surface area against an occupant’s body to reduce injury.
Front air bags
Knee air bag
Knee air bags specifically prevent knees from shattering on impact.
